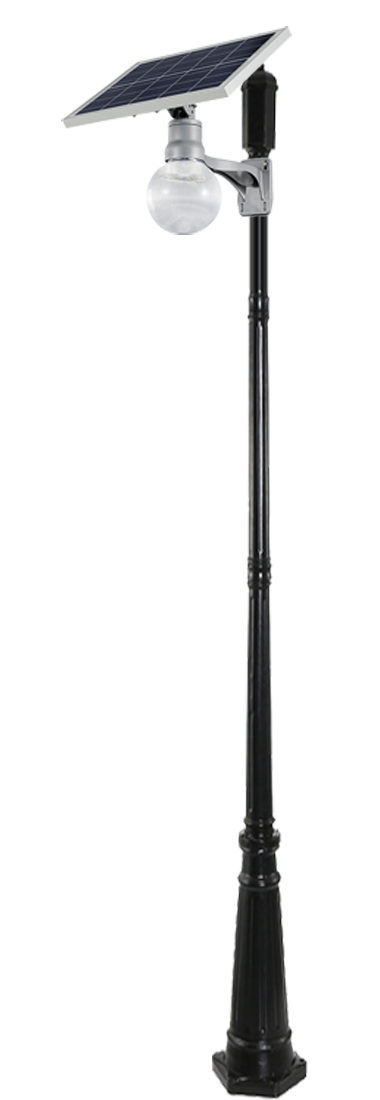

All-in-one Solar Moon Light

Hitechled all in one solar powered LED moon lights are designed with beautiful moon-like appearance. It is equipped with high efficiency polycrystalline PV and high brightness LEDs.

The all-in-one solar moon light special feature

● All in one compact design.
● 360deg lighting design.
● Solar panel direction adjuable.
● Easy installation.
● Plug and Play,remoter control.
● Rust-proof, dust-proof, water-proof.

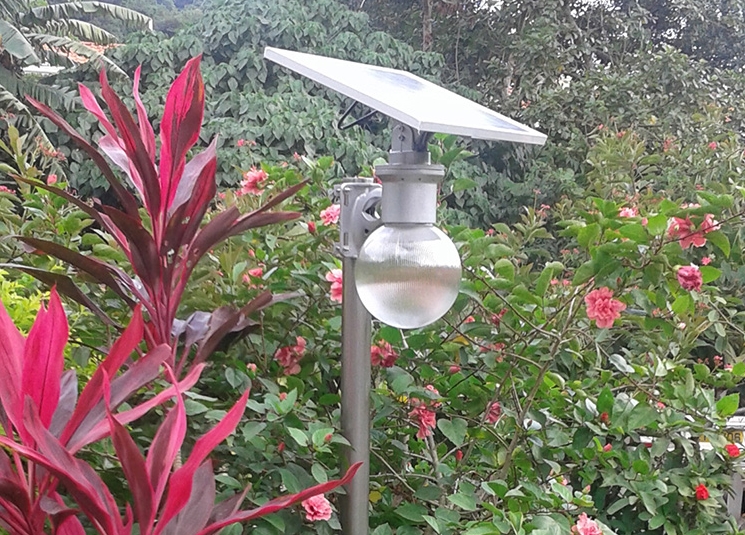

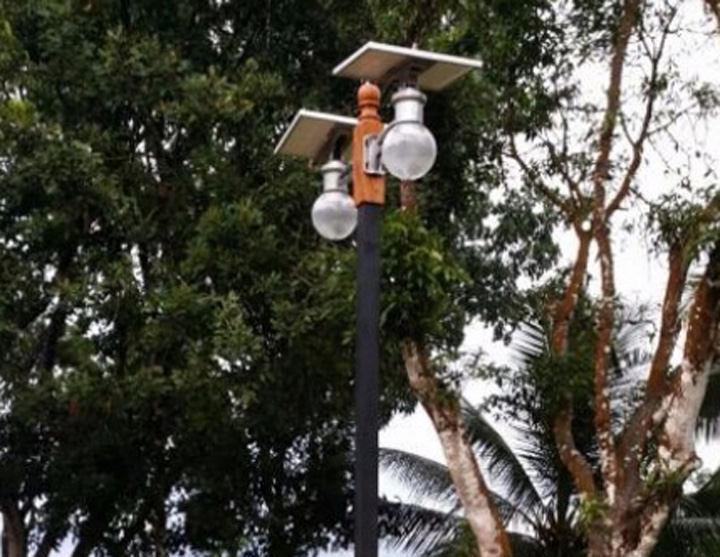

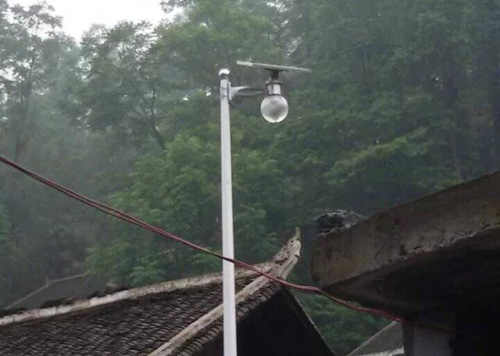

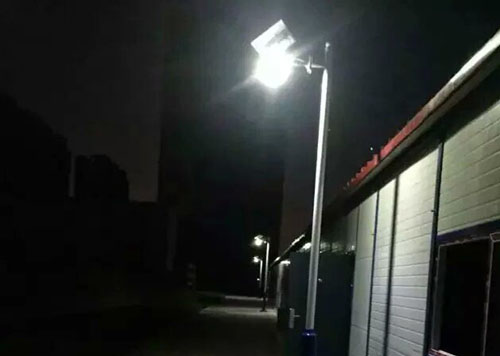

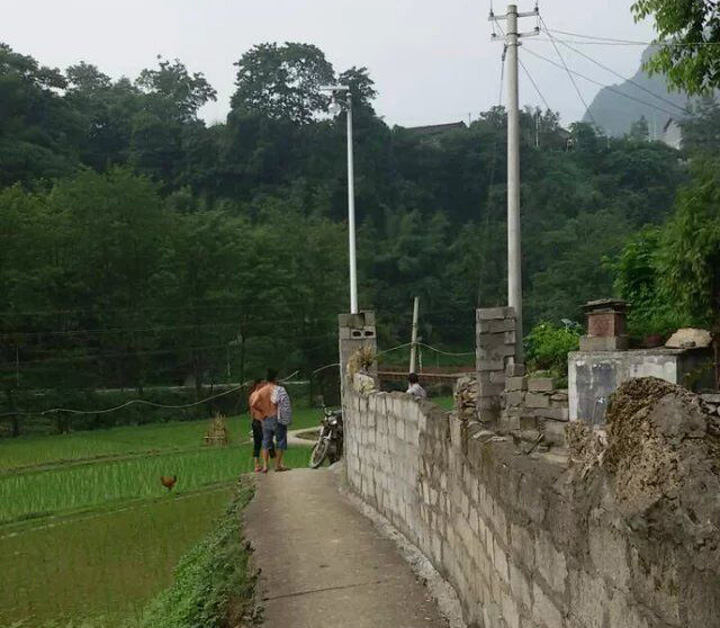

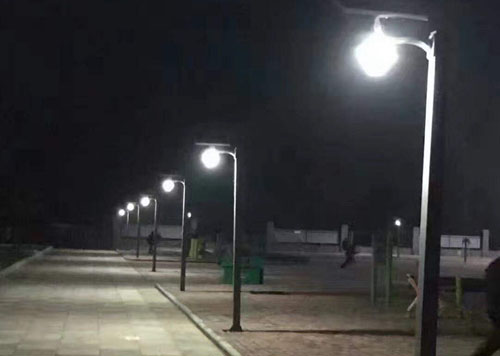

The all in one solar LED moon lights are widely used for pathway, garden, villa, parking Lot, construction site, security, mine lot, residential, scenic area, Gate, entrance, fram and rench,dock and pier, campus lane etc.

Product Manu Download

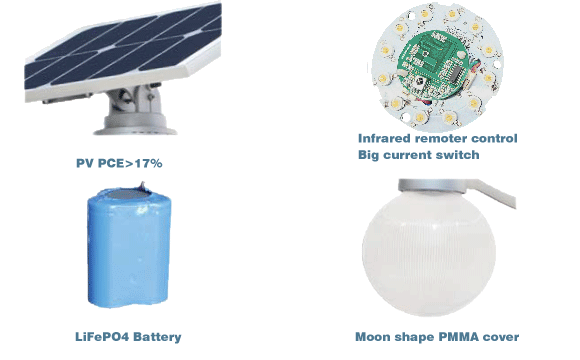

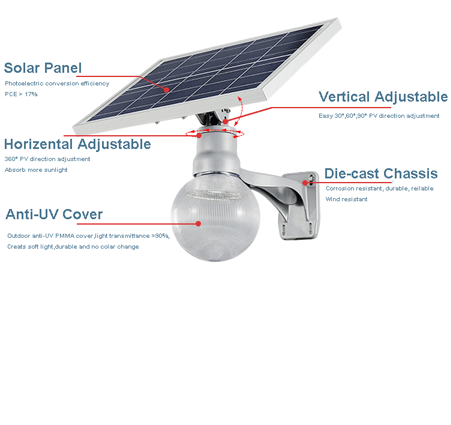

: Components Viewing

High efficient polycrystalline solar panel,efficiency>17%, lifespan 25 years
LED lamp: high brightness bridgelux LED, low brightness degradation
Battery: high quality LiFePO4 battery, lifespan 2,000 cycles, >5 years
Moon-like shape MPPA cover, create soft and gentle light
Intelligent controller expands the lighting time

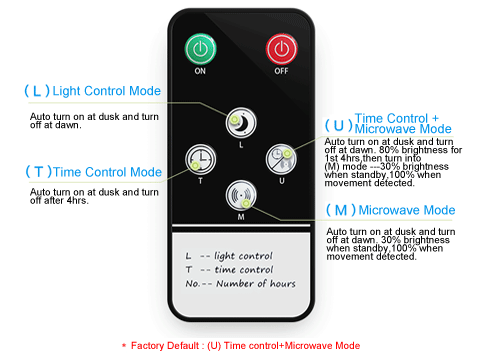

: Six working mode choices

ON: No matter day or night, light "on" when people,close, light "off" after people left.
OFF: Light "off",No matter day or night.
L: Auto turn on at dusk and turn off at dawn.
T: Auto turn on at dusk and turn off after 4hrs.
M: Auto turn on at dusk and turn off at dawn. 30% brightness when standby,100% when movement detected.
U: Auto turn on at dusk and turn off at dawn.80% brightness for 1st 4hrs,then turn into (M) mode --- 30% brightness when standby,100% when movement detected.

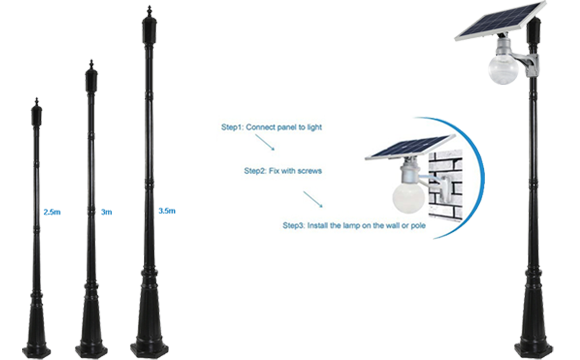

: Installation Recommendation

Either wall-mounting or pole mounting
Suggested Pole mounting top diameter: 30mm ~ 60mm
Suggested Pole mounting height: 2.5m ~ 5mm
Suggested Pole mounting space between lamps: 8m ~ 15m
Standard pole available for option: 2.5m, 3m, 3.5m

Parameter

Item
Solar Panel
LED Lamp
Battery
Charging Time
Discharging Time
Mounting height

HT-SG-M6	HT-SG-M9	HT-SG-M12
10W polycrystalline Lifespan 25 years	25W polycrystalline Lifespan 25 years	35W polycrystalline Lifespan 25 years
6W, 500~900lm	9W, 1,000~1,350lm	12W, 1,350~1,800lm
3.2V 10AH LiFePO4 Battery 2000cycles, Lifespan >5 years	3.2V 20AH LiFePO4 Battery 2000cycles, Lifespan >5 years	3.2V 30AH LiFePO4 Battery >2000cycles, Lifespan >5 years
5~7hours	5~7hours	5~7hours
Full power >8hrs Saving mode 3 to 5 days	Full power >8hrs Saving mode 3 to 5 days	Full power >8hrs Saving mode 3 to 5 days
2.5m-4m(suggested)	2.5m-5m(suggested)	3.5m-6m(suggested)

Life Time

- Solar Panel: 25 Years;
- LEDs: 50,000Hrs;
- LiFePO4 Battery: 2,000 cycles;Normal Lithium Ion Battery 500~1000cycles

It means that with one installation,you can get at least 5 years free lighting. Every year,one HT-SG-M9 equals to about 220 Lbs co2 exhaust cut ,1.2 Trees planted ,0.15 cars off the road,6.5G gasoline not used,$20 of electricity saved.

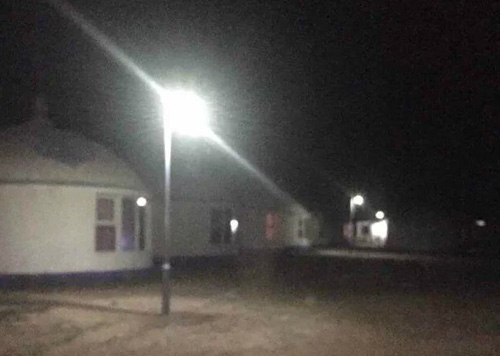

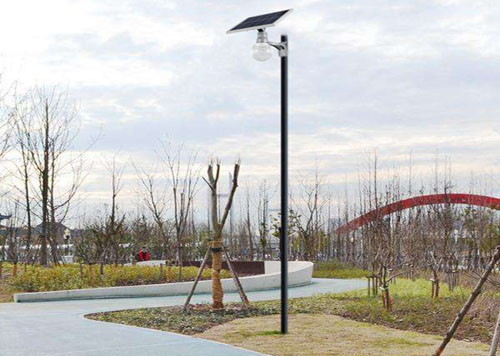

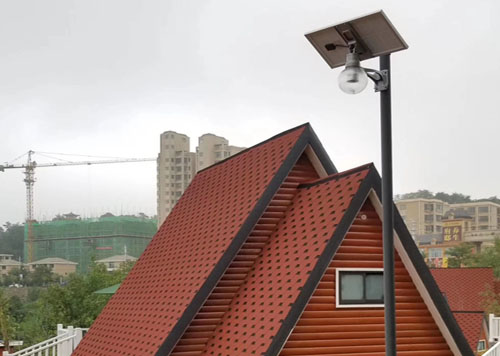

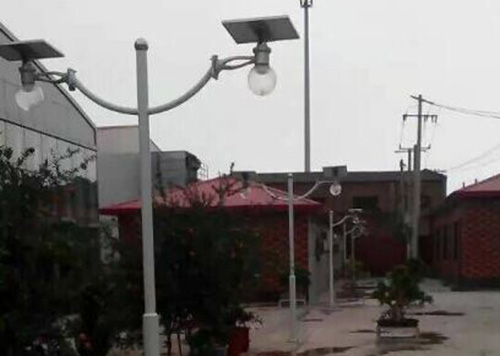

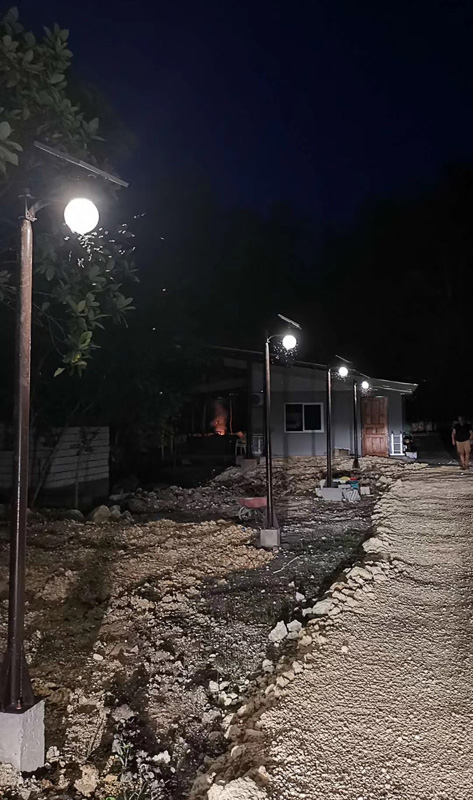

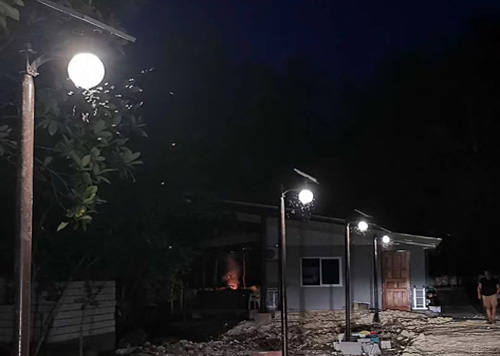

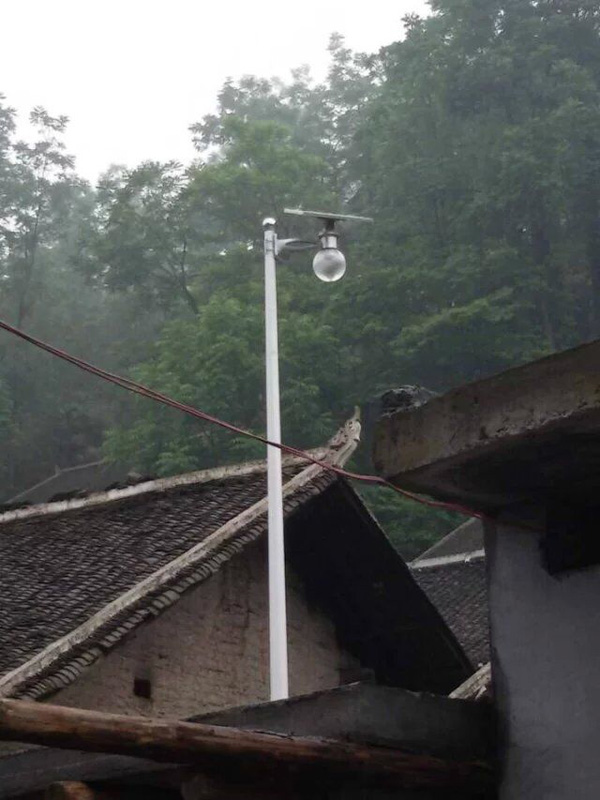

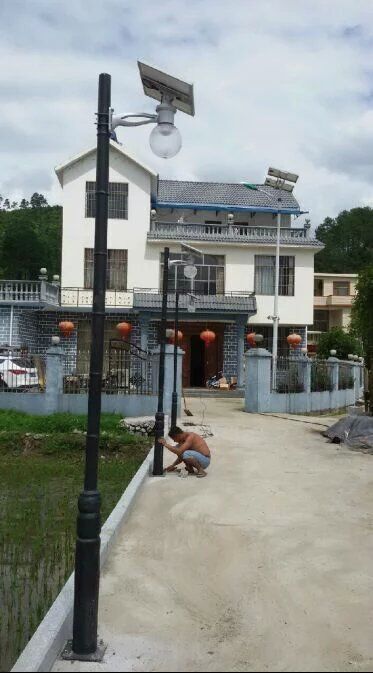

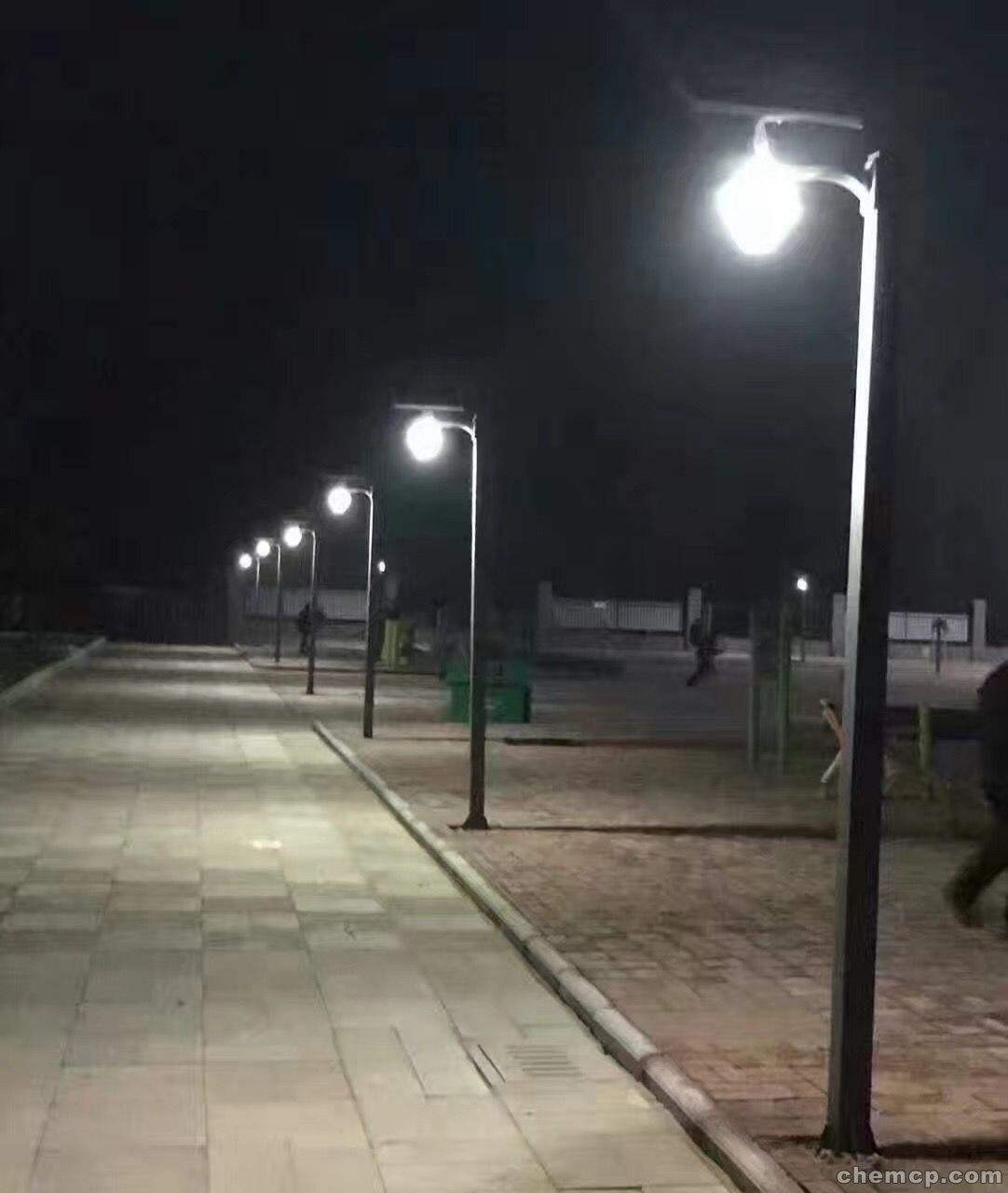

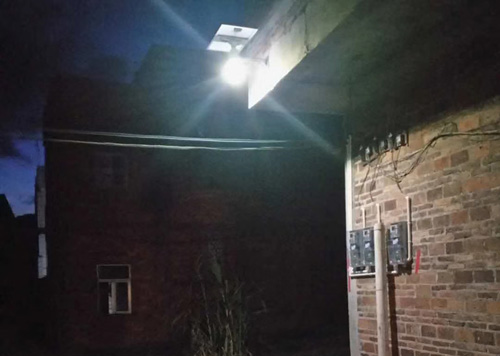

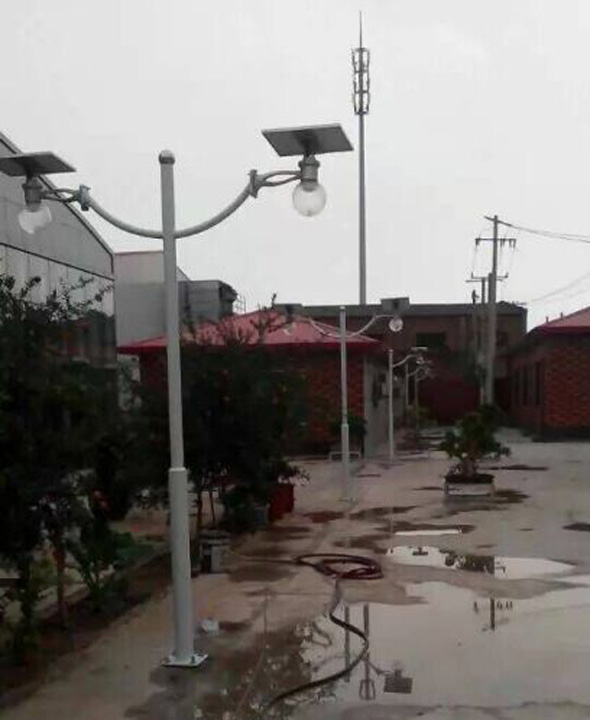

Application Scenarios

LEARN MORE

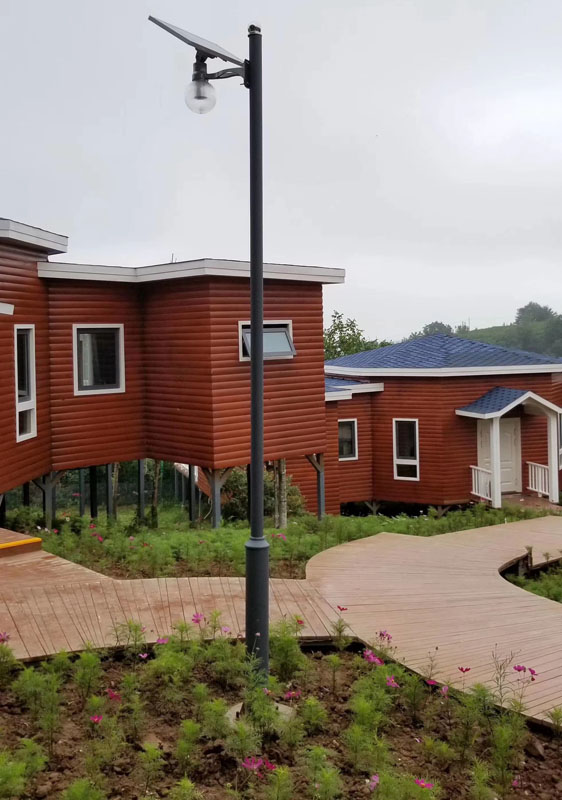

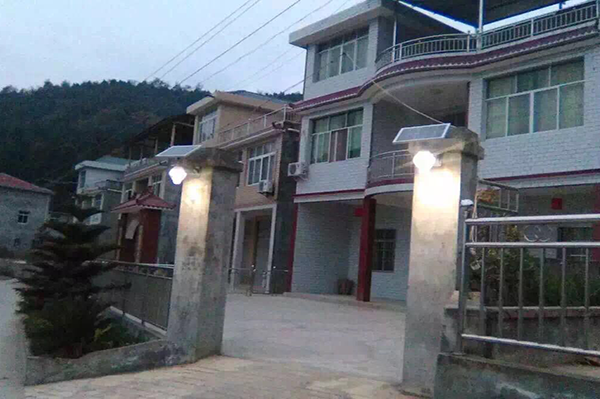

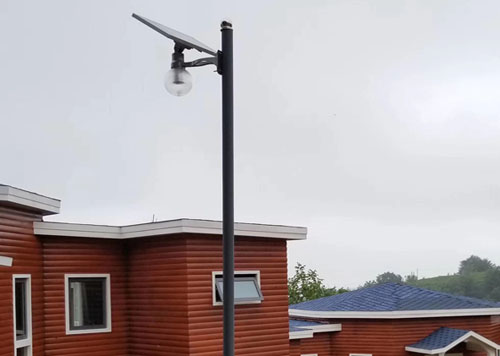

Villa
