hitechled all in one solar moon light

All-in-one Solar Moon Light

Hitechled all in one solar powered LED moon lights are designed with beautiful moon-like appearance. It is equipped with high efficiency polycrystalline PV and high brightness LEDs.

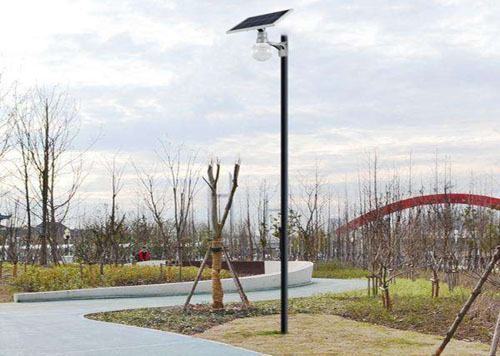

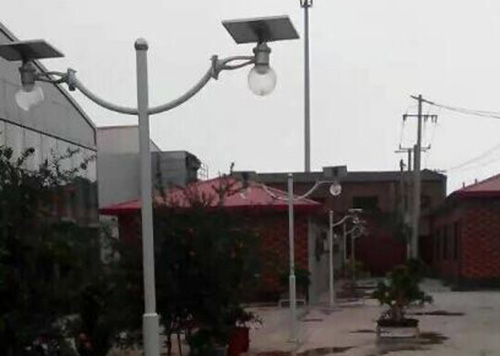

The all in one solar LED moon lights are widely used for pathway, garden, villa, parking lot, construction site, security, mine lot, residential, scenic area, event, camping, etc.

Features

● All in one compact design.
● Moon-like elegant design.
● 360deg lighting design.
● Solar panel direction adjuable.
● Easy installation.
● Plug and Play,remoter control.
● Rust-proof, dust-proof, water-proof.

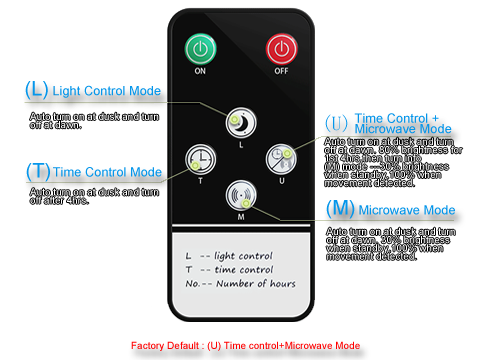

Six working mode choices

ON: No matter day or night, light "on" when people,close, light "off" after people left.
OFF: Light "off",No matter day or night.
L: Auto turn on at dusk and turn off at dawn.
T: Auto turn on at dusk and turn off after 4hrs.
M: Auto turn on at dusk and turn off at dawn. 30% brightness when standby,100% when movement detected.
U: Auto turn on at dusk and turn off at dawn.80% brightness for 1st 4hrs,then turn into (M) mode --- 30% brightness when standby,100% when movement detected.

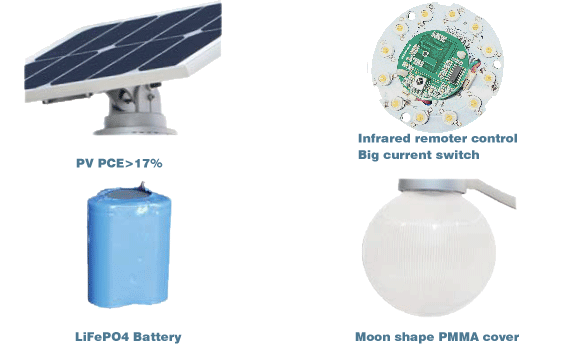

Components Viewing

High efficient polycrystalline solar panel,efficiency>17%, lifespan 25 years
LED lamp: high brightness bridgelux LED, low brightness degradation
Battery: high quality LiFePO4 battery, lifespan 2,000 cycles, >5 years
Moon-like shape MPPA cover, create soft and gentle light
Intelligent controller expands the lighting time.

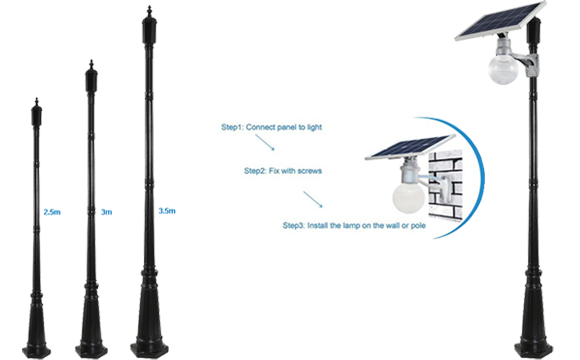

Installation Recommendation

Either wall-mounting or pole mounting
Suggested Pole mounting top diameter: 30mm ~ 60mm
Suggested Pole mounting height: 2.5m ~ 5mm
Suggested Pole mounting space between lamps: 8m ~ 15m
Standard pole available for option: 2.5m, 3m, 3.5m

Life Time

- Solar Panel: 25 Years;
- LEDs: 50,000Hrs;
- LiFePO4 Battery: 2,000 cycles;Normal Lithium Ion Battery 500~1000cycles

It means that with one installation,you can get at least 5 years free lighting. Every year,one HT-SG-M9 equals to about 220 Lbs co2 exhaust cut ,1.2 Trees planted ,0.15 cars off the road,6.5G gasoline not used,$20 of electricity saved.

Parameter


ITEM \ MODEL
Solar Panel
LED Lamp
Battery
Charging Time
Discharging Time
Mounting height
HT-SG-M6 HT-SG-M9 HT-SG-M12
10W polycrystalline
Lifespan 25 years
25W polycrystalline
Lifespan 25 years
35W polycrystalline
Lifespan 25 years
6W, 500~900lm 9W, 1,000~1,350lm 12W, 1,350~1,800lm
3.2V 10AH LiFePO4 Battery
2000cycles, Lifespan >5 years
3.2V 20AH LiFePO4 Battery
2000cycles, Lifespan >5 years
3.2V 30AH LiFePO4 Battery
>2000cycles, Lifespan >5 years
5~7hours 5~7hours 5~7hours
Full power >8hrs
Saving mode 3 to 5 days
Full power >8hrs
Saving mode 3 to 5 days
Full power >8hrs
Saving mode 3 to 5 days
2.5m-4m(suggested) 2.5m-5m(suggested) 3.5m-6m(suggested)
