Solar Street Light

A1 Series A2 Series D3 Series U4 Series Flying Bird Series Split Series

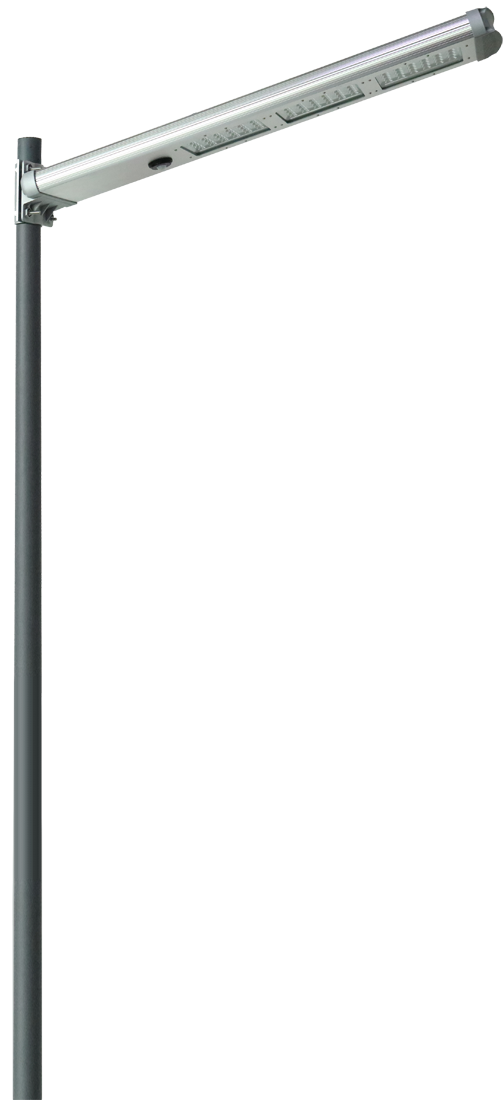

A1 All-in-one Solar Street Light

Hitechled A1 series solar powered LED lights are designed with beautiful streamlined appearance, adopting thicker and pure aluminum housing, anodized treatment. It's upgraded functionally by adopting high-quality Lithium battery, higher efficiency solar cell, intelligent controller, improved the lighting backup time greatly

The A1 all-in-one solar street light special feature

● Slim all in one integrated design.
● Multi painting color option.
● Multi LED source option.
● Rust-proof, dust-proof, water-proof.

A1 series all in one solar street lights are widely used for pathway, garden, county road, rural street, parking Lot, construction site, security, mine lot, rural area, scenic area, jetties, etc.

Product Manu Download

PV 10W to 50W◆ Hitechled A1 solar street light

: Modular Lamp with 120DEG Round LED LENS
Suit to light for square or round area, such as garden, courtyard, patio, plaza,etc
As it is slim and light weight, it is good choice for temporary construction site lighting, event lighting.

Modular Lamp with unique 150*75deg lens
providing much wider effective lighting area compared to the conventional solar lights mounting in the same height.
Suit for parking lot lighting, pathway lighting, garden lighting, road street lighting, temporary construction site lighting, security lighting,etc.

: Modular Lamp with unique 150*75deg lens
providing much wider effective lighting area compared to the conventional solar lights mounting in the same height.
Suit for parking lot lighting, pathway lighting, garden lighting, road street lighting, temporary construction site lighting, security lighting,etc.
Different painting color option to meet your landscape environment.

How does it work?

The solar panel converts sunlight into electricity and stored in Lithium Ion battery via controller, the LED light will work at night automatically under the light sensor control, and provide light for the different areas. It will light in about 30% saving-mode when standby, and switches to full power mode when PIR sensor detects movement. The full power mode will last about 30s (after the last motion detected) and then switches back to low power mode until new motion detected. It can be also pre-programmed by time schedule without motion sensor as well. The intelligent system will control the lamp according to the battery capacity and environment.

Life Time

- Solar Panel: 25 Years;
- LEDs: 50,000Hrs;
- LiFePO4 Battery: 2,000 cycles;Normal Lithium Ion Battery 500~1000cycles

It means that with one installation,you can get at least 5 years free lighting.Every year,one HT-SS-A130 equals to about 400 Lbs co2 exhaust cut ,3 Trees planted ,0.3 cars off the road,15G gasoline not used,$50 of electricity saved.

Parameter

ITEM \ MODEL
Solar Panel
LED Lamp
Battery
Charging Time
Discharging Time
Mounting height

HT-SS-A110	HT-SS-A120	HT-SS-A130	HT-SS-A140	HT-SS-A150
10W Monocrystalline Lifespan 25 years	20W Monocrystalline Lifespan 25 years	30W Monocrystalline Lifespan 25 years	40W Monocrystalline Lifespan 25 years	50W Monocrystalline Lifespan 25 years
1pc CREE 3030 Modular LED Lamp 1,000~2,000lm, Lifespan 50,000hrs	2pcs CREE 3030 Modular LED Lamp 2,000~3,000lm, Lifespan 50,000hrs	3pcs CREE 3030 Modular LED Lamp 3,000~4,000lm, Lifespan 50,000hrs	3pcs CREE 3030 Modular LED Lamp 3,000~4,500lm, Lifespan 50,000hrs	4pcs CREE 3030 Modular LED Lamp 4,000~5,000lm, Lifespan 50,000hrs
3.2V 20AH or 12.8V 5AH Lithium Ion Battery, >2000cycles	3.2V 26AH or 12.8V 6AH Lithium Ion Battery, >2000cycles	3.2V 36AH or 12.8V 9AH Lithium Ion Battery, >2000cycles	12.8V 12AH Lithium Ion Battery >2000cycles, more than 5 years	12.8V 18AH Lithium Ion Battery >2000cycles, more than 5 years
6~7hours	5~7hours	5~7hours	5~7hours	5~7hours
Full power >10hrs Dimming mode 3 to 5 days	Full power >10hrs Dimming mode 3 to 5 days	Full power >10hrs Dimming mode 3 to 5 days	Full power >10hrs Dimming mode 3 to 5 days	Full power >10hrs Dimming mode 3 to 5 days
2.5-4m(suggested)	3-5m(suggested)	3-5m(suggested)	4-6m(suggested)	4-6m(suggested)

Why Choose HITECHLED Solar Street Light?

Smart All In One Integrated Technology

● Elegant Modular design ● Easy installation & Minimum Maintenance ● Green Renewable Energy with high quality ● 24/7 pre-sales & d after-sales services
