Solar Street Light

A1 Series A2 Series D3 Series U4 Series Flying Bird Series Split Series

Split Solar Street Light

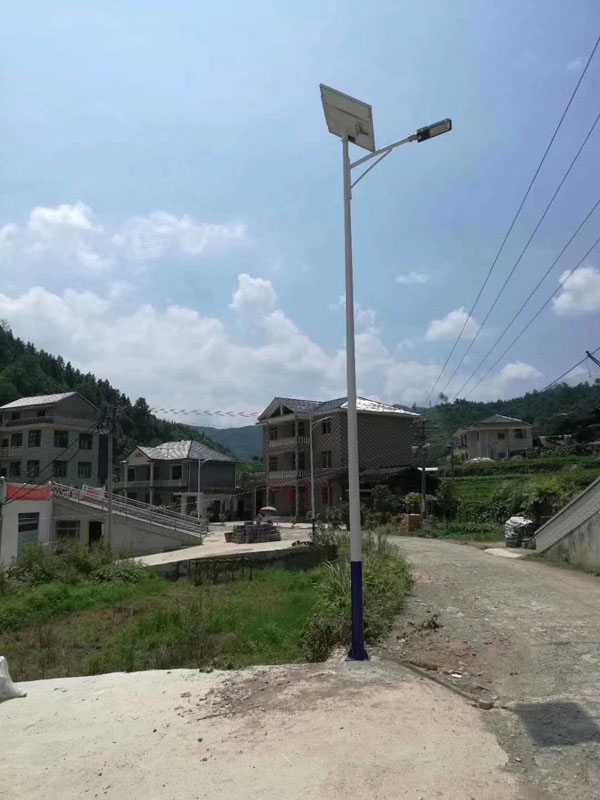

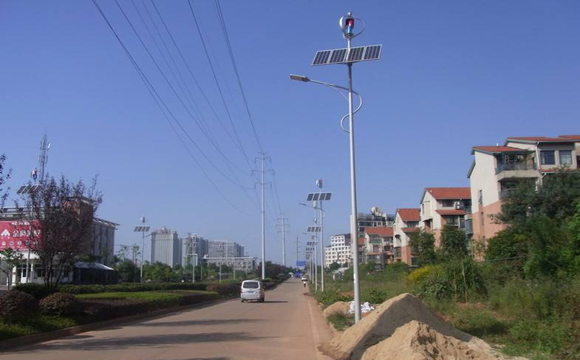

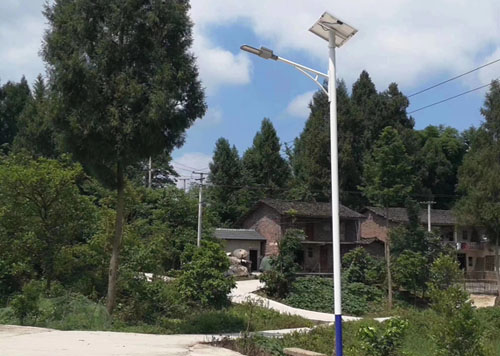

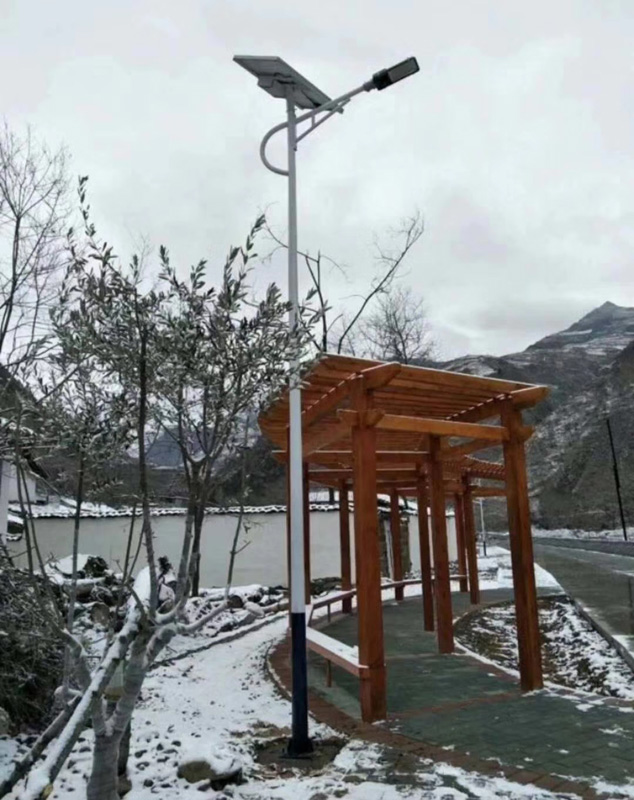

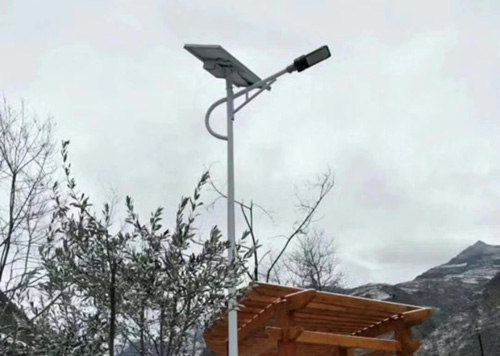

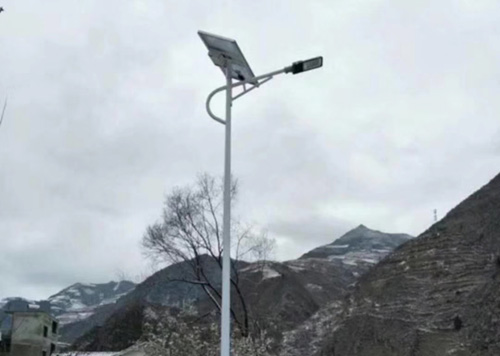

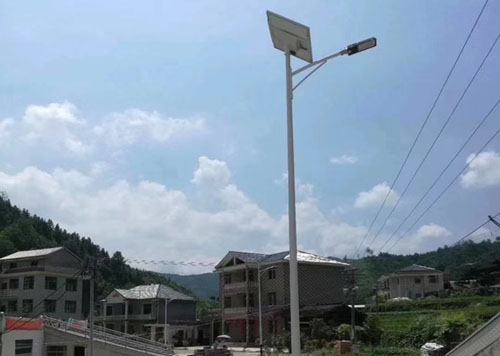

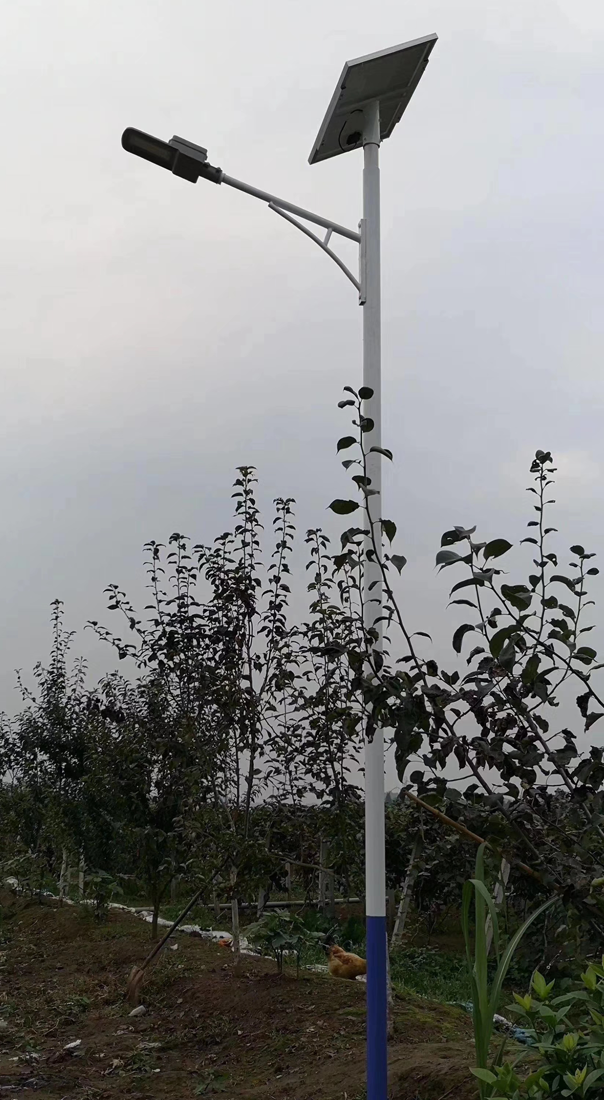

Hitechled split solar powered LED street lights has separated Mono Crystalline solar panel and light head.

The split LED solar street light special feature

● Solar panel,lamp head, battery box separated design.
● Lamp head can be with long bracket
● Solar panel direction adjustable
● Rust-proof, dust-proof, water-proof.

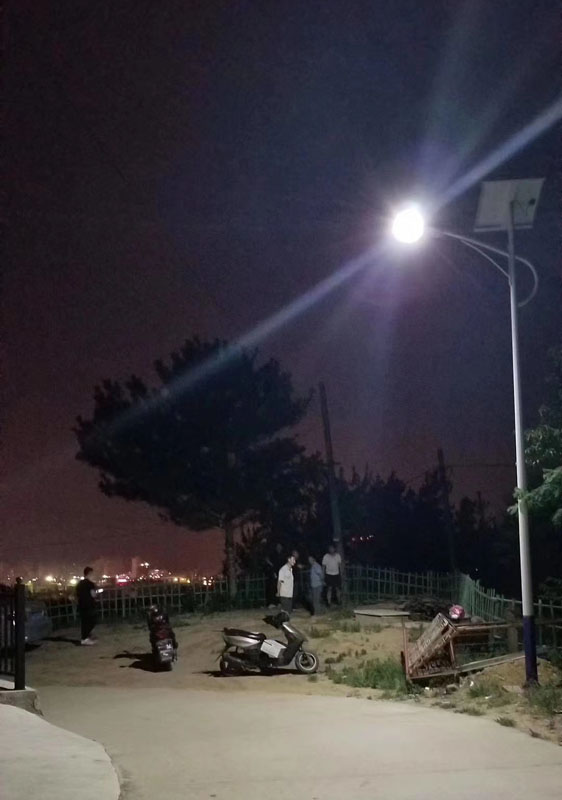

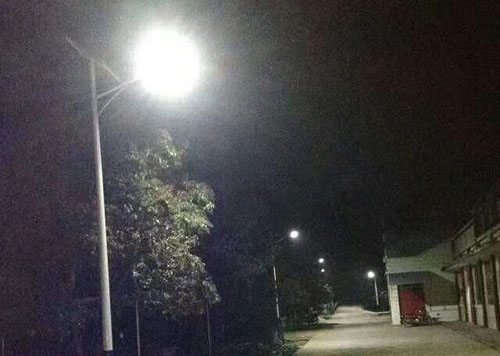

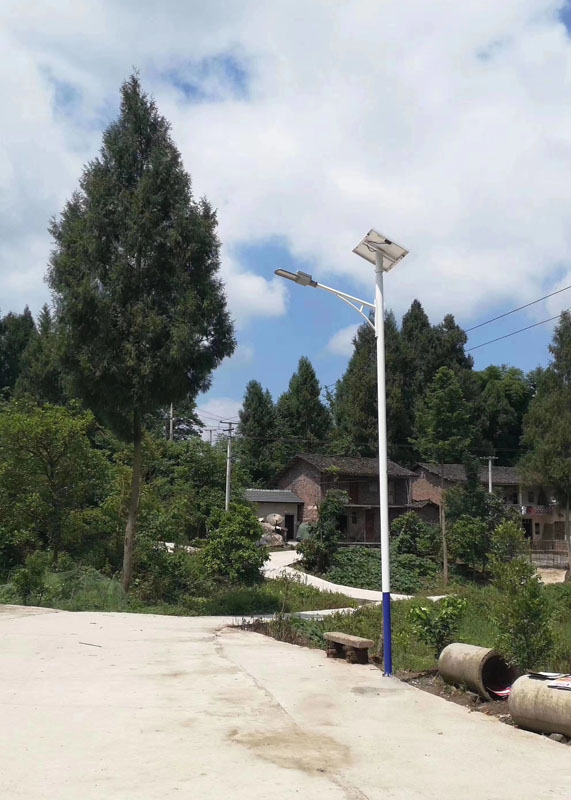

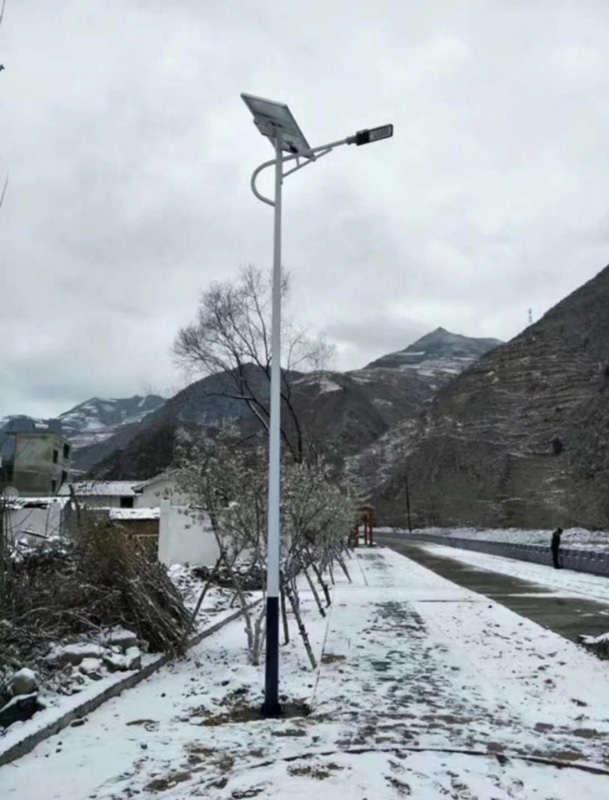

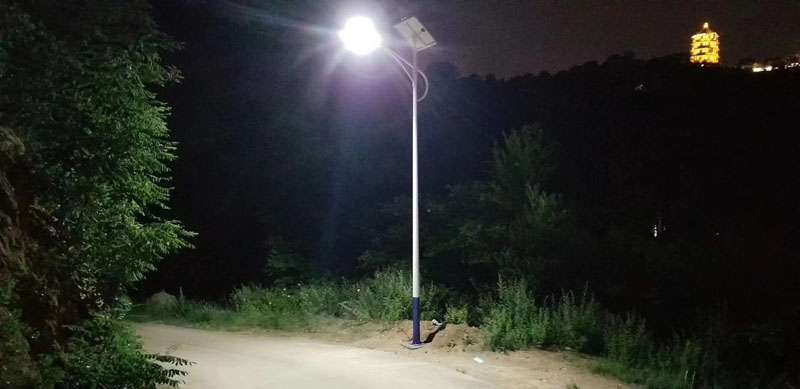

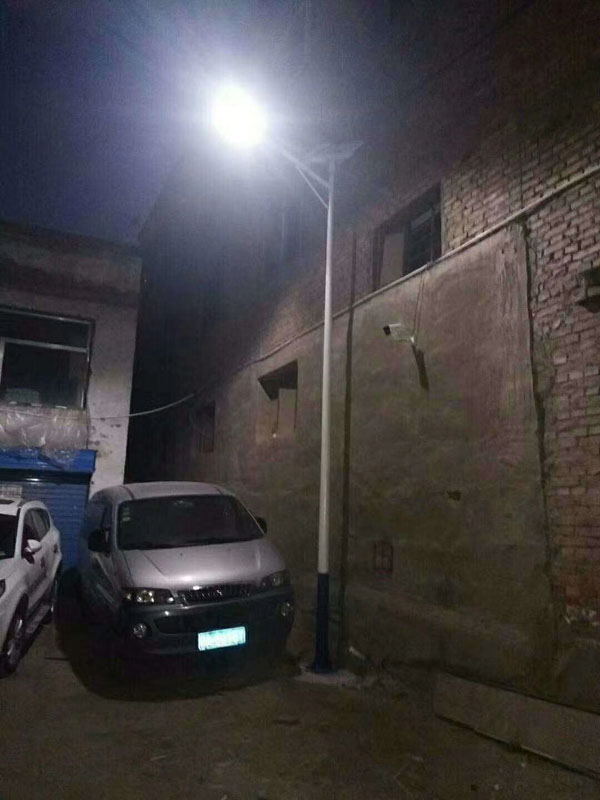

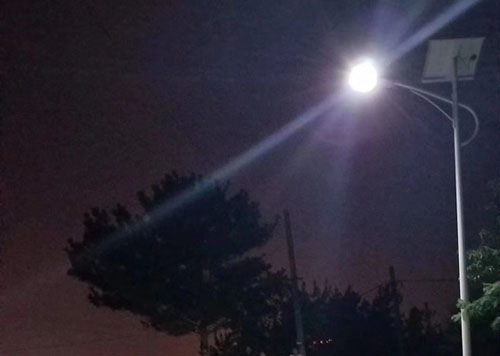

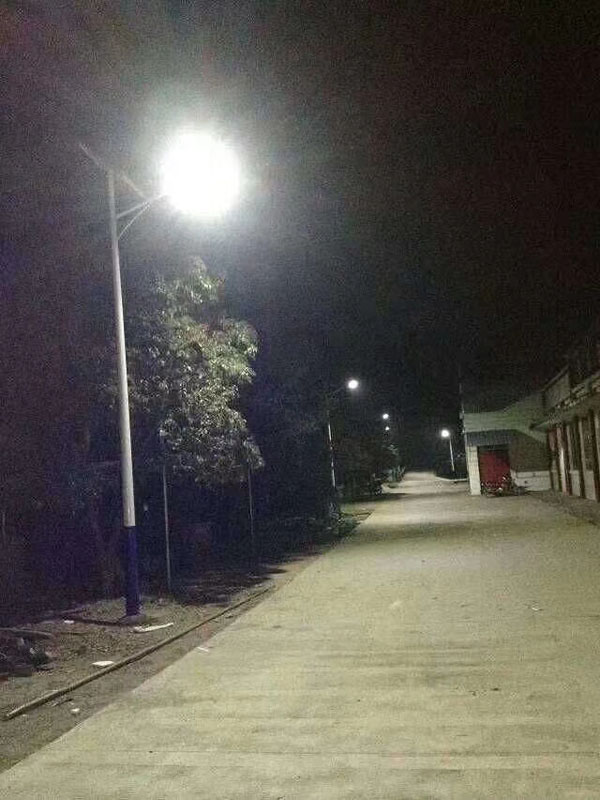

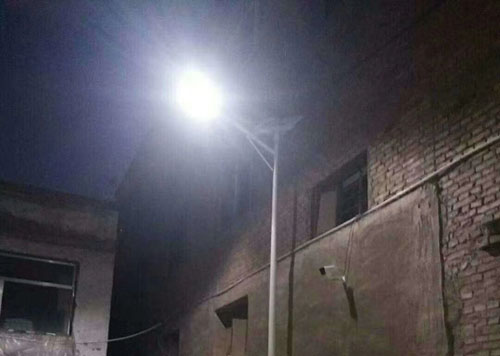

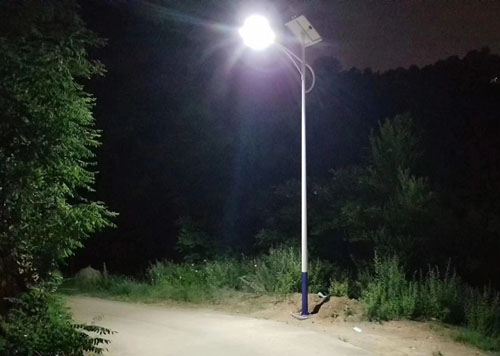

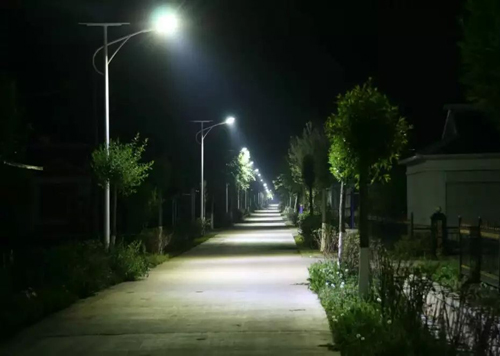

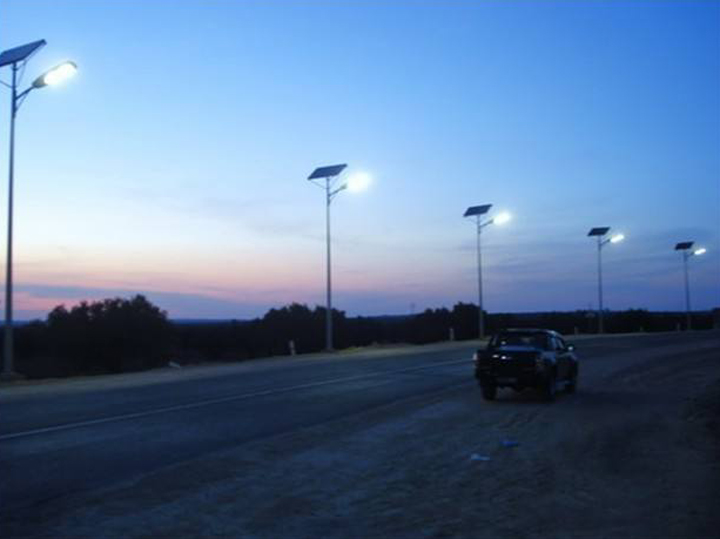

The split solar street lights are widely used for main street, residential, pathway, parking lot, security, Mine lot, rural area,mountain area, etc.

Product Manu Download

: Why choose Hitechled split solar

street light?

● Solar panel power optional, big power solar power generate more electrinic power.
● Solar panel direction freely adjustable, fit all location environment
● LED lamp head optional, choose different LED lamp freely
● LED lamp can be with long bracket, lighting area larger
● Battery capacity can be as bigger, with longer backup time

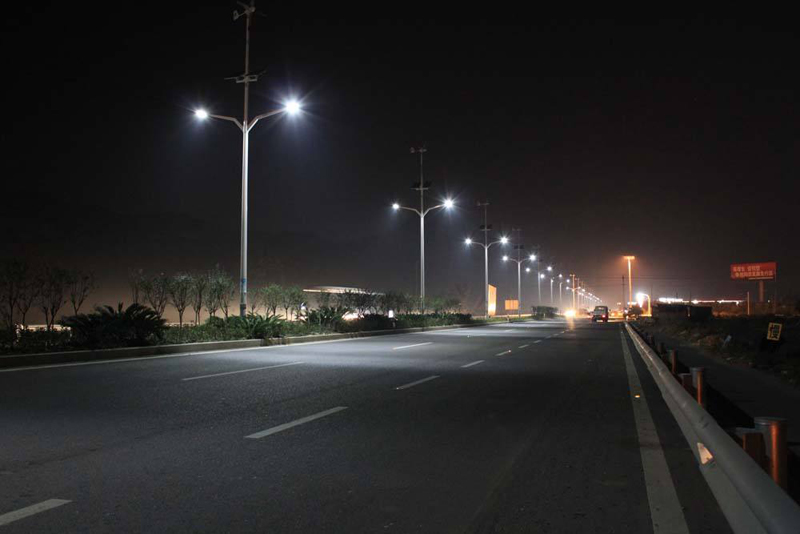

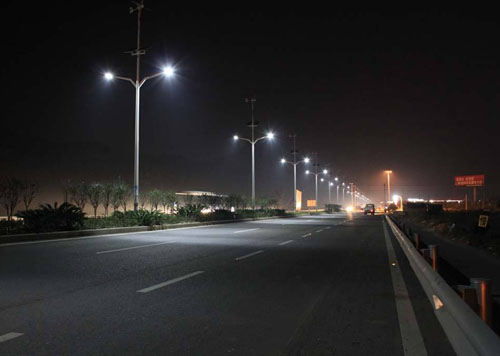

● Bigger power solution, suit for expressway, main street lighting

: How does it work?

The solar panel converts sunlight into electricity and stored in Lithium Ion battery via controller, the LED light will work at night automatically under the light sensor control, and provide light for the different areas. It is mostly working to full brightness and brightness can be scheduled to save more power. The intelligent system will control the lamp according to the battery capacity and environment. It can be also with motion sensor solution for special lamp head design.

Life Time

- Solar Panel: 25 Years;
- LEDs: 50,000Hrs;
- LiFePO4 Battery: 2,000 cycles;Normal Lithium Ion Battery 500~1000cycles

It means that with one installation,you can get at least 5 years free lighting.Every year,one HT-SS-SP220 equals to about 1200 Lbs co2 exhaust cut ,9 Trees planted ,2 cars off the road, 86G gasoline not used, $200 of electricity saved.

Parameter

Item
Solar Panel
LED Lamp
Battery
Charging Time
Discharging Time
Mounting height

HT-SS-SP160	HT-SS-SP220	HT-SS-SP320
160W polycrystalline Lifespan 25 years	240W polycrystalline Lifespan 25 years	320W polycrystalline Lifespan 25 years
80W, 8,000~10,000lm	100W, 10,000~11,000lm	120W, 12,000~15,000lm
12V 80AH Lithium Ion Battery >1500cycles, Lifespan >5 years	12V 120H Lithium Ion Battery >1500cycles, Lifespan >5 years	24V 100AH Lithium Ion Battery >1500cycles, Lifespan >5 years
4~6hours	4~6hours	4~6hours
Full power >10hrs Saving mode 3 to 7 days	Full power >10hrs Saving mode 3 to 7 days	Full power >10hrs Saving mode 3 to 7 days
6-8m(suggested)	6-10m(suggested)	8-12m(suggested)
