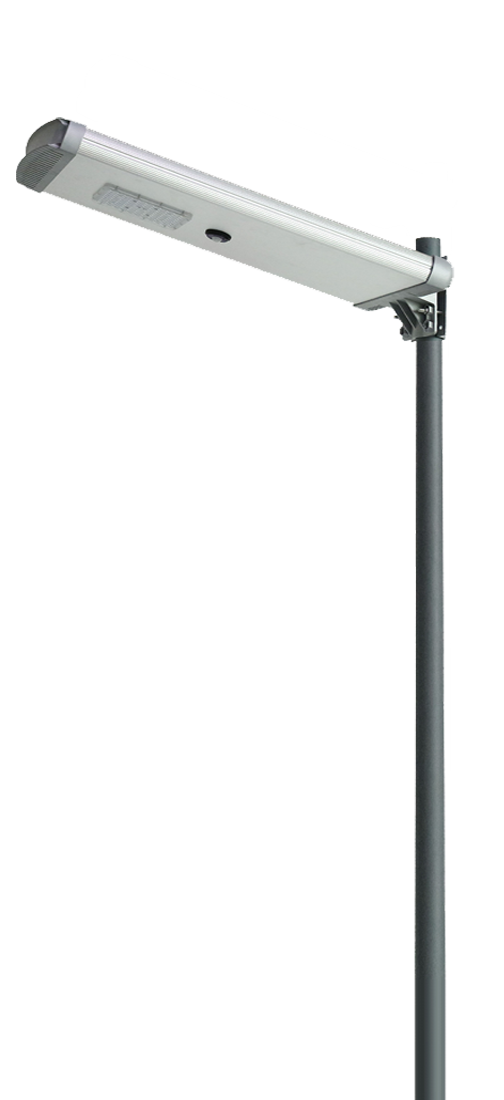

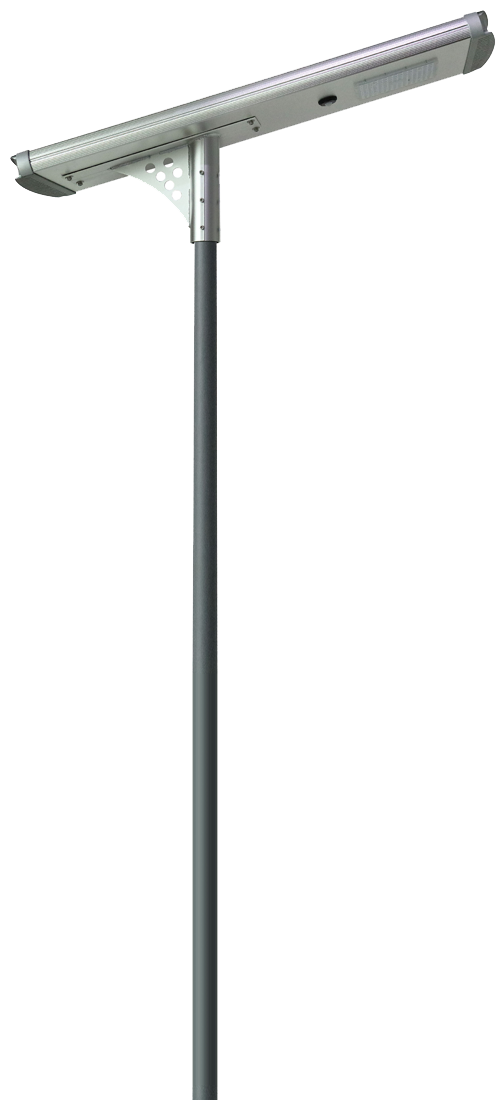

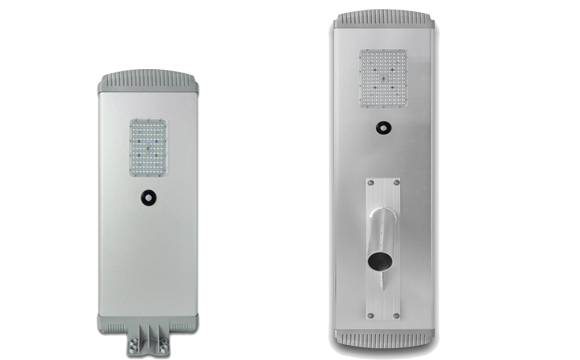

A2 All-in-one Solar Street Light

Hitechled A2 series solar powered LED street lights are designed with beautiful streamlined appearance, adopting thicker and pure aluminum housing, anodized treatment. It's upgraded functionally by adopting high-quality Lithium battery, higher efficiency solar cell, intelligent controller, improved the lighting backup time greatly.

The A2 all-in-one solar street light special feature

● Complete tooled elegant sleek aluminum design.
● Very easy to install and simple to maintain.
● Rust-proof, dust-proof, water-proof.

A2 series all in one integrated solar street lights are widely used for expressway, main street, pathway, Garden, county road, Gate, Parking Lot, Construction site, security, Mine lot, Rural Area, Scenic Area, etc.

Product Manu Download

PV 40W to 60W◆ Hitechled A2 series all in one LED solar street light

PV 80W to 90W◆ Hitechled A2 series all in one solar street light

: How do we enchance the value?

● Designed unique optical lens with 150*75 degree beam angle, providing much wider effective lighting area compared to the conventional solar lights for mounting in the same height.
● With long life cycle battery, >2000 times deep cycle. Good performance at high temperature resistance. Low self-discharge rate < 3% monthly.
● With more LEDs to make the light distribution much even.
● With professional engineer team to provide road lighting solution for your project, create more advantages for our customers.

: How does it work?

The solar panel converts sunlight into electricity and stored in Lithium Ion battery via controller, the LED light will work at night automatically under the light sensor control, and provide light for the different areas. It will light in about 30% saving-mode when standby, and switches to full power mode when PIR sensor detects movement. The full power mode will last about 30s (after the last motion detected) and then switches back to low power mode until new motion detected. It can be also pre-programmed by time schedule without motion sensor as well. The intelligent system will control the lamp according to the battery capacity and environment.

Life Time

- Solar Panel: 25 Years;
- LEDs: 50,000Hrs;
- LiFePO4 Battery: 2,000 cycles;Normal Lithium Ion Battery 500~1000cycles

It means that with one installation,you can get at least 5 years free lighting.Every year,one HT-SS-A280 equals to about 660 Lbs co2 exhaust cut ,5 Trees planted ,1 cars off the road,35G gasoline not used,$90 of electricity saved.

Parameter

Item
Solar Panel
LED Lamp
Battery
Charging Time
Discharging Time
Mounting height

HT-SS-A240	HT-SS-A250	HT-SS-A260	HT-SS-A280	HT-SS-A2100
40W Monocrystalline Lifespan 25 years	50W Monocrystalline Lifespan 25 years	60W Monocrystalline Lifespan 25 years	80W Monocrystalline Lifespan 25 years	100W Monocrystalline Lifespan 25 years
96pcs CREE Modular LED Lamp 2,500~3,500lm, > 50,000hrs	96pcs CREE Modular LED Lamp 3,500~4,500lm, > 50,000hrs	144pcs CREE Modular LED Lamp 4,000~5,500lm, > 50,000hrs	144pcs CREE Modular LED Lamp 5,500~6,500lm, > 50,000hrs	144pcs CREE Modular LED Lamp 6,000~8,000lm, > 50,000hrs
231WH Lithium Ion Battery >2000cycles,more than 5 years	308WH Lithium Ion Battery >2000cycles,more than 5 years	346WH Lithium Ion Battery >2000cycles,more than 5 years	461WH Lithium Ion Battery >2000cycles,more than 5 years	538WH Lithium Ion Battery >2000cycles,more than 5 years
6~7hours	6~7hours	6~7hours	6~7hours	6~7hours
Full power >10hrs Dimming mode 3 to 5 days	Full power >10hrs Dimming mode 3 to 5 days	Full power >10hrs Dimming mode 3 to 5 days	Full power >10hrs Dimming mode 3 to 5 days	Full power >10hrs Dimming mode 3 to 5 days
4-6m(suggested)	5-6m(suggested)	5-7m(suggested)	6-8m(suggested) PIR sensor control <8m; Time control >8m	6-10m(suggested) PIR sensor control <8m; Time control >8m

Why Choose HITECHLED Solar Street Light?

Smart All In One Integrated Technology

● Elegant Modular design ● Easy installation & Minimum Maintenance ● Green Renewable Energy with high quality ● 24/7 pre-sales & d after-sales services
