Solar Street Light

A1 Series A2 Series D3 Series U4 Series Flying Bird Series Split Series

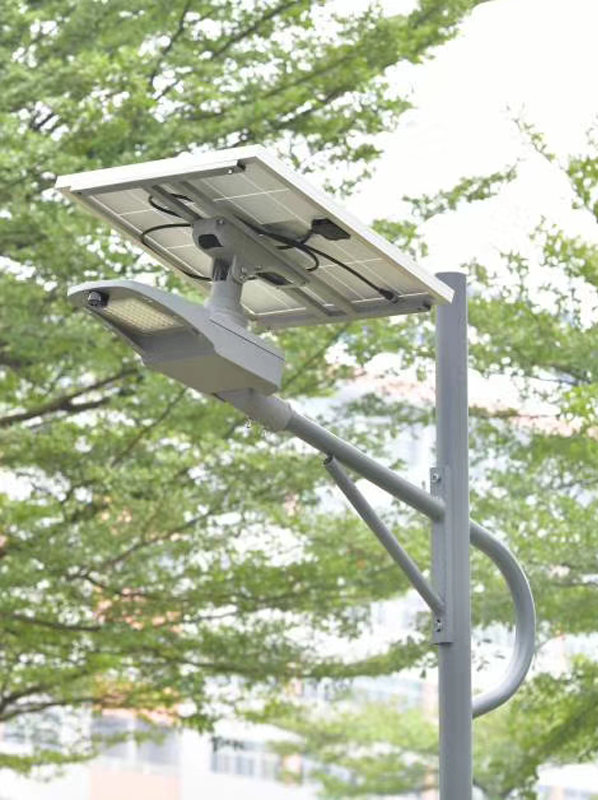

Flying Bird All-in-2 Solar Street Light

Hitechled Flying Bird series solar powered LED street lights has separated Mono Crystalline solar panel like the WING of a bird and the light head like the body of a bird.

The Flying Bird all-in-two LED solar street light special feature

● All-in-two Bird-Like design.
● Lamp head mounting bracket direction adjustable
● Solar panel direction adjustable
● Rust-proof, dust-proof, water-proof.

The Flying Bird series integrated solar street lights are widely used for rural street, residential, pathway, garden, county road, gate, parking lot, security, Mine lot, rural area, billboard lighting, etc.

Product Manu Download

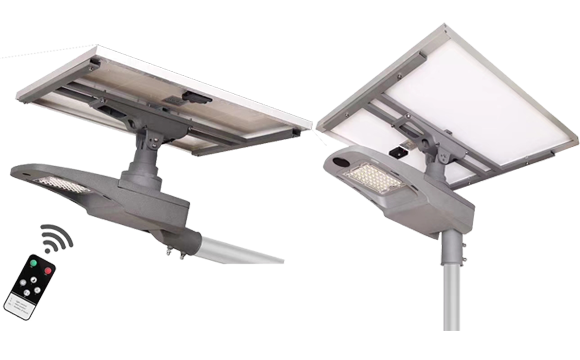

Hitechled Flying Bird solar street light

: How do we enchance the value?

● Elegant die-casted bird-like lamp head design.
● With long life cycle battery, >2000 times deep cycle. Good performance at high temperature resistance. Low self-discharge rate < 3% monthly.
● With remoter control, easy change the lightinig mode
● Easy adjust the lamp head mounting direction
● Solar panel can be adjusted according to different environment and maximum the charging efficiency.

: How does it work?

The solar panel converts sunlight into electricity and stored in Lithium Ion battery via controller, the LED light will work at night automatically under the light sensor control, and provide light for the different areas. It will light in about 30% saving-mode when standby, and switches to full power mode when PIR sensor detects movement. The full power mode will last about 30s (after the last motion detected) and then switches back to low power mode until new motion detected. It can be also pre-programmed by time schedule without motion sensor as well. The intelligent system will control the lamp according to the battery capacity and environment.

Life Time

- Solar Panel: 25 Years;
- LEDs: 50,000Hrs;
- LiFePO4 Battery: 2,000 cycles;Normal Lithium Ion Battery 500~1000cycles

It means that with one installation,you can get at least 5 years free lighting.Every year,one HT-SS-FB80 equals to about 600 Lbs co2 exhaust cut ,5 Trees planted ,1.1 cars off the road,40G gasoline not used,$100 of electricity saved.

Parameter

Item
Solar Panel
LED Lamp
Battery
Charging Time
Discharging Time
Mounting height

HT-SS-FB40	HT-SS-FB60	HT-SS-FB80	HT-SS-FB100
40W polycrystalline Lifespan 25 years	60W polycrystalline Lifespan 25 years	80W polycrystalline Lifespan 25 years	100W polycrystalline Lifespan 25 years
50pcs Bridgelux LED 30W, 3,000~4,000lm	50pcs Bridgelux LED 40W, 4,200~5,500lm	50pcs Bridgelux LED 50W, 5,600~6,800lm	50pcs Bridgelux LED 60W~80W, 6,500~8,000lm
3.2V 40AH LiFePO4 Lithium Battery >2000cycles, Lifespan >5 years	3.2V 60H LiFePO4 Lithium Battery >2000cycles, Lifespan >5 years	3.2V 80AH LiFePO4 Lithium Battery >2000cycles, Lifespan >5 years	6.4V 50AH LiFePO4 Lithium Battery >2000cycles, Lifespan >5 years
4~6hours	4~6hours	4~6hours	4~6hours
Full power >10hrs Dimming mode 3 to 5 days	Full power >10hrs Dimming mode 3 to 5 days	Full power >10hrs Dimming mode 3 to 5 days	Full power >10hrs Dimming mode 3 to 5 days
4-6m(suggested)	5-6m(suggested)	5-7m(suggested)	6-8m(suggested)

Why Choose HITECHLED Solar Street Light?

Smart All In One Integrated Technology

● Elegant Modular design ● Easy installation & Minimum Maintenance ● Green Renewable Energy with high quality ● 24/7 pre-sales & d after-sales services
